Features and Benefits

• High performance and cost effective trough valve (29 psi, 188 l/min).
• Designed with a 25mm (1″”) female thread on the valve outlet.
• Supplied with 15, 20 & 25mm adaptors to fit a range of inlets.
• Ability to attach to any number of poly pipe fittings i.e. portable troughs, irrigation systems, animal/feeder/vehicle wash-downs, spray tanks.
• Each valve will fit multiple thread and connection combinations.
• Strong, compact design.
• Delivers high volumes of water quickly with unrestricted full flow.
• “Slipper Fit Piston” design to reduce valve sticking.
• Low operating pressure required reducing pumping costs and increasing flow.
• Mini body design to enable easy installation.
• Manufactured from strong, non-corrosive UV stabilised materials.
• Available in Female and Male BSPT, NPT, ACME thread configurations.
• Suitable for high/low pressure operations (0 to 12 bar / 0 to 174 PSI).
• Variable open and close action preventing valve bounce and water hammer.

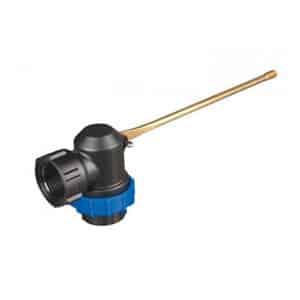

• Supplied with: Complete Plastic Valve Body, 15, 20 & 25mm Standard Adaptors and Short Brass Arm.
