Hansen Super Flo Plastic Trough Long Arm 20mm-20mm
Description

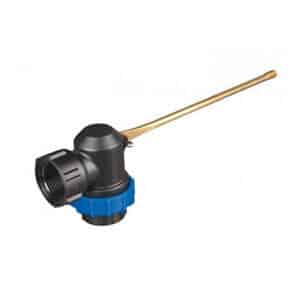

Super Flo Plastic Long Arm
1/2″ (15mm) + 3/4″ (20mm) + 1″ (25mm) adaptors are included.
This plastic-body valve is supplied with 3 adaptor fittings, long brass float arm and 60cm of float cord (with nuts attached). Flow Rate 188lpm & 29 psi with 115cm ball
Price $ 34.95 incl. GST
Features and Benefits
- High performance and cost effective trough valve (29 psi, 188 l/min).
- Designed with a 25mm (1″”) female thread on the valve outlet.
- Supplied with 15, 20 & 25mm adaptors to fit a range of inlets.
- Ability to attach to any number of poly pipe fittings i.e. portable troughs, irrigation systems, animal/feeder/vehicle wash-downs, spray tanks.
- Each valve will fit multiple thread and connection combinations.
- Strong, compact design.
- Delivers high volumes of water quickly with unrestricted full flow.
- “Slipper Fit Piston” design to reduce valve sticking.
- Low operating pressure required reducing pumping costs and increasing flow.
- Mini body design to enable easy installation.
- Manufactured from strong, non-corrosive UV stabilised materials.
- Available in Female and Male BSPT, NPT, ACME thread configurations.
- Suitable for high/low pressure operations (0 to 12 bar / 0 to 174 PSI).
- Variable open and close action preventing valve bounce and water hammer.
- Supplied with: Complete Plastic Valve Body, 15, 20 & 25mm Standard Adaptors and Short Brass Arm.
